JavaIO怎么调用WindowsAPI的——从Native层剖析JavaIO文件读写

上一篇文章中列举了JavaIO中FileDescriptor和File类提供的一些文件操作,这些操作还只是对文件系统中的文件进行创建或删除操作。鉴于大一玩过Window编程(对Linux API不是很熟悉),所以这篇文章会从Windows C API去分析一下Java提供给我们的几个文件读写类。

建议结合着源代码看这篇文章(这篇文章就是记录我看源代码的过程,这里的java版本是1.8.0_131)

RandomAccessFile

这个类就是完全模仿C语言的文件读写操作,允许随机读取,想读文件的哪个部分就可以把文件流指针指到哪儿。下面会列一张表将这个类中的常用方法和标准C语言API进行对比,然后再看一下Java在Native层是怎么实现这个类的:

JavaC
public int read(byte b[], int off, int len)
public int read(byte b[])
public final void readFully(byte b[])
public final void readFully(byte b[], int off, int len)
size_t fread( void *buffer, size_t size, size_t count, FILE *stream );
public int read()int fgetc( FILE *stream );
int getc( FILE *stream );
public void write(byte b[])
public void write(byte b[], int off, int len)
size_t fwrite( const void *buffer, size_t size, size_t count, FILE *stream );
public void write(int b)int fputc( int ch, FILE *stream );
int putc( int ch, FILE *stream );
public void seek(long pos)
public int skipBytes(int n)
int fseek( FILE *stream, long offset, int origin );
int fsetpos( FILE *stream, const fpos_t *pos );
void rewind(FILE *stream);
public native long getFilePointer()long ftell( FILE *stream );
int fgetpos( FILE *stream, fpos_t *pos );

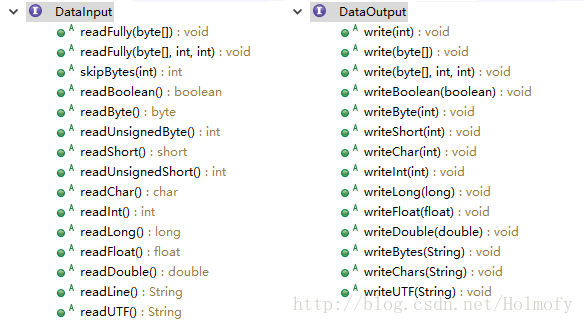

RandomAccessFile还同时实现了DataOutput, DataInput两个接口,所以同时拥有了DataInputStreamDataOutputStream两个类的基本方法。

RandomAccessFile

open

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
// 首先从构造方法开始看
public RandomAccessFile(String name, String mode)
throws FileNotFoundException
{
this(name != null ? new File(name) : null, mode);
}
// mode参数指定文件的打开模式
public RandomAccessFile(File file, String mode)
throws FileNotFoundException
{
String name = (file != null ? file.getPath() : null);
int imode = -1;
// r 表示“只读”,调用写操作将会抛出IO异常
if (mode.equals("r"))
imode = O_RDONLY;
// rw 表示“可读可写”,如果文件不存在就会创建它
else if (mode.startsWith("rw")) {
imode = O_RDWR;
rw = true;
if (mode.length() > 2) {
// rws 表示每一次写入操作文件内容(content)或元数据(metadata),
// 底层存储设备也会同步写入
if (mode.equals("rws"))
imode |= O_SYNC;
// rws 表示每一次写入操作文件内容(content)
// 底层存储设备也会同步写入
else if (mode.equals("rwd"))
imode |= O_DSYNC;
else
imode = -1;
// “rwd”模式可用于减少执行的I / O操作的数量。
// 使用“rwd”更新时只要写入文件内容;
// 使用“rws”更新时要写入文件内容以及文件元数据(文件大小,文件名等信息),
// 而文件元数据的更新,通常需要至少一个底层IO操作
}
}
if (imode < 0)
throw new IllegalArgumentException("Illegal mode \"" + mode
+ "\" must be one of "
+ "\"r\", \"rw\", \"rws\","
+ " or \"rwd\"");
SecurityManager security = System.getSecurityManager();
if (security != null) {
security.checkRead(name);
if (rw) {
security.checkWrite(name);
}
}
if (name == null) {
throw new NullPointerException();
}
if (file.isInvalid()) {
throw new FileNotFoundException("Invalid file path");
}
fd = new FileDescriptor();
fd.attach(this);
path = name;
// 最终辗转调用native方法
open(name, imode);
}
private void open(String name, int mode)
throws FileNotFoundException {
open0(name, mode);
}
// 最终的native方法
private native void open0(String name, int mode)
throws FileNotFoundException;

下面看一下native层是怎么打开文件的:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
/////////////////////////////////////////////////////////////////////////
// RandomAccessFile.c文件
JNIEXPORT void JNICALL
Java_java_io_RandomAccessFile_open(JNIEnv *env,
jobject this, jstring path, jint mode)
{
int flags = 0;
// 构造标志位
if (mode & java_io_RandomAccessFile_O_RDONLY)
flags = O_RDONLY;
else if (mode & java_io_RandomAccessFile_O_RDWR) {
flags = O_RDWR | O_CREAT;
if (mode & java_io_RandomAccessFile_O_SYNC)
flags |= O_SYNC;
else if (mode & java_io_RandomAccessFile_O_DSYNC)
flags |= O_DSYNC;
}
// fileOpen
fileOpen(env, this, path, raf_fd, flags);
}


/////////////////////////////////////////////////////////////////////////
// io_util_md.c文件
// 这里看的windows上的实现
void
fileOpen(JNIEnv *env, jobject this, jstring path, jfieldID fid, int flags)
{
FD h = winFileHandleOpen(env, path, flags);
if (h >= 0) {
SET_FD(this, h, fid);
}
}

FD
winFileHandleOpen(JNIEnv *env, jstring path, int flags)
{
// 将标志位解析成Windows API中规定的标志位
const DWORD access =
(flags & O_WRONLY) ? GENERIC_WRITE :
(flags & O_RDWR) ? (GENERIC_READ | GENERIC_WRITE) :
GENERIC_READ;
const DWORD sharing =
FILE_SHARE_READ | FILE_SHARE_WRITE;
const DWORD disposition =
/* Note: O_TRUNC overrides O_CREAT */
(flags & O_TRUNC) ? CREATE_ALWAYS :
(flags & O_CREAT) ? OPEN_ALWAYS :
OPEN_EXISTING;
const DWORD maybeWriteThrough =
(flags & (O_SYNC | O_DSYNC)) ?
FILE_FLAG_WRITE_THROUGH :
FILE_ATTRIBUTE_NORMAL;
const DWORD maybeDeleteOnClose =
(flags & O_TEMPORARY) ?
FILE_FLAG_DELETE_ON_CLOSE :
FILE_ATTRIBUTE_NORMAL;
const DWORD flagsAndAttributes = maybeWriteThrough | maybeDeleteOnClose;

// 文件句柄
HANDLE h = NULL;

// 转成Windows路径
WCHAR *pathbuf = pathToNTPath(env, path, JNI_TRUE);
if (pathbuf == NULL) {
/* Exception already pending */
return -1;
}
// 调用windows API
h = CreateFileW(
pathbuf, /* Wide char path name */
access, /* Read and/or write permission */
sharing, /* File sharing flags */
NULL, /* Security attributes */
disposition, /* creation disposition */
flagsAndAttributes, /* flags and attributes */
NULL);
free(pathbuf);

if (h == INVALID_HANDLE_VALUE) {
throwFileNotFoundException(env, path);
return -1;
}
// 最后将文件句柄作为FileDescriptor返回
return (jlong) h;
}

//////////////////////////////////////////////////////////////////////////
// io_util.md.h文件
#define FD jlong

#define SET_FD(this, fd, fid) \
if ((*env)->GetObjectField(env, (this), (fid)) != NULL) \
(*env)->SetLongField(env, (*env)->GetObjectField(env, (this), (fid)), IO_handle_fdID, (fd))

点击这里可以查看CreateFile的API文档:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
// 返回文件句柄
HANDLE WINAPI CreateFile(
// 创建(或打开)的文件名(或设备名)
_In_ LPCTSTR lpFileName,
// 访问属性,这个值通常是GENERIC_READ,GENERIC_WRITE,或者(GENERIC_READ | GENERIC_WRITE).
_In_ DWORD dwDesiredAccess,
// 文件共享模式: FILE_SHARE_READ,FILE_SHARE_READ,FILE_SHARE_WRITE
_In_ DWORD dwShareMode,
// SECURITY_ATTRIBUTES结构体指针,该参数可以为NULL
_In_opt_ LPSECURITY_ATTRIBUTES lpSecurityAttributes,
// 文件创建的配置:
// CREATE_ALWAYS,总是创建新的文件
// CREATE_NEW,不存在就创建新文件
// OPEN_ALWAYS,总是打开文件
// OPEN_EXISTING,仅当文件存在时打开文件
// TRUNCATE_EXISTING,如果文件存在,删除原来的数据
_In_ DWORD dwCreationDisposition,
// 文件的属性标记:
// FILE_ATTRIBUTE_ARCHIVE,归档文件
// FILE_ATTRIBUTE_ENCRYPTED,加密文件
// FILE_ATTRIBUTE_HIDDEN,隐藏文件
// FILE_ATTRIBUTE_NORMAL,普通文件
// FILE_ATTRIBUTE_READONLY,只读文件
// FILE_ATTRIBUTE_TEMPORARY,临时文件
// ...
_In_ DWORD dwFlagsAndAttributes,
// 使用某个文件的属性作为模板
_In_opt_ HANDLE hTemplateFile
);

read

1
2
3
// 所有的read方法最终都会辗转调用这两个方法
private native int read0() throws IOException; // 读取一个字节
private native int readBytes(byte b[], int off, int len) throws IOException; // 读取多个字节

Native层代码:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
/////////////////////////////////////////////////////////////////////
// RandomAccessFile.c文件
JNIEXPORT jint JNICALL
Java_java_io_RandomAccessFile_read(JNIEnv *env, jobject this) {
return readSingle(env, this, raf_fd);
}

JNIEXPORT jint JNICALL
Java_java_io_RandomAccessFile_readBytes(JNIEnv *env,
jobject this, jbyteArray bytes, jint off, jint len) {
return readBytes(env, this, bytes, off, len, raf_fd);
}

////////////////////////////////////////////////////////////////////
// io_util.c文件
jint
readSingle(JNIEnv *env, jobject this, jfieldID fid) {
jint nread;
char ret;
FD fd = GET_FD(this, fid);
if (fd == -1) {
JNU_ThrowIOException(env, "Stream Closed");
return -1;
}
// 调用IO_Read
nread = IO_Read(fd, &ret, 1);
if (nread == 0) { /* EOF */
return -1;
} else if (nread == -1) { /* error */
JNU_ThrowIOExceptionWithLastError(env, "Read error");
}
return ret & 0xFF;
}

/* 缓存大小 */
// 估计这也是为什么BufferedInputStream缓存大小为8192的原因
#define BUF_SIZE 8192

/* 越界判断 */
static int
outOfBounds(JNIEnv *env, jint off, jint len, jbyteArray array) {
return ((off < 0) ||
(len < 0) ||
// We are very careful to avoid signed integer overflow,
// the result of which is undefined in C.
((*env)->GetArrayLength(env, array) - off < len));
}

jint
readBytes(JNIEnv *env, jobject this, jbyteArray bytes,
jint off, jint len, jfieldID fid)
{
jint nread;
// 在栈中申请的默认缓存空间
char stackBuf[BUF_SIZE];
char *buf = NULL;
FD fd;

if (IS_NULL(bytes)) {
JNU_ThrowNullPointerException(env, NULL);
return -1;
}

if (outOfBounds(env, off, len, bytes)) {
JNU_ThrowByName(env, "java/lang/IndexOutOfBoundsException", NULL);
return -1;
}

// 根据想要读取的字节数,申请对应大小的缓冲区
if (len == 0) {
return 0;
} else if (len > BUF_SIZE) {
// 申请缓冲区内存
buf = malloc(len);
if (buf == NULL) {
JNU_ThrowOutOfMemoryError(env, NULL);
return 0;
}
} else {
// 如果需要读取的字节数小于默认缓存大小
// 则使用栈缓存区
buf = stackBuf;
}

// 获取文件句柄
fd = GET_FD(this, fid);
if (fd == -1) {
JNU_ThrowIOException(env, "Stream Closed");
nread = -1;
} else {
// 也是调用IO_Read方法读取文件
nread = IO_Read(fd, buf, len);
if (nread > 0) {
(*env)->SetByteArrayRegion(env, bytes, off, nread, (jbyte *)buf);
} else if (nread == -1) {
JNU_ThrowIOExceptionWithLastError(env, "Read error");
} else { /* EOF */
nread = -1;
}
}

// 释放缓冲区内存
if (buf != stackBuf) {
free(buf);
}
return nread;
}

////////////////////////////////////////////////////////////////////
// io_util_md.h文件
#define IO_Read handleRead

////////////////////////////////////////////////////////////////////
// io_util_md.c文件
JNIEXPORT
jint
handleRead(FD fd, void *buf, jint len)
{
DWORD read = 0;
BOOL result = 0;
// Windows上FileDescriptor就是Handle文件句柄
HANDLE h = (HANDLE)fd;
if (h == INVALID_HANDLE_VALUE) {
return -1;
}
// 调用Windows API
result = ReadFile(h, /* File handle to read */
buf, /* address to put data */
len, /* number of bytes to read */
&read, /* number of bytes read */
NULL); /* no overlapped struct */
if (result == 0) {
int error = GetLastError();
if (error == ERROR_BROKEN_PIPE) {
return 0; /* EOF */
}
return -1;
}
return (jint)read;
}

点击这里查看ReadFile的API文档

1
2
3
4
5
6
7
8
9
10
11
12
BOOL WINAPI ReadFile(
// 文件句柄
_In_ HANDLE hFile,
// 接收数据的字节缓冲区
_Out_ LPVOID lpBuffer,
// 读取数据的长度
_In_ DWORD nNumberOfBytesToRead,
// 接受数据读取的长度,当lpOverlapped参数不为NULL,该参数可以为NULL
_Out_opt_ LPDWORD lpNumberOfBytesRead,
// OVERLAPPED结构体指针,用于使用FILE_FLAG_OVERLAPPED标记打开的文件
_Inout_opt_ LPOVERLAPPED lpOverlapped
);

write

1
2
3
// 所有的write方法最终都会调用这两个方法
private native void write0(int b) throws IOException; // 写入一个字节
private native void writeBytes(byte b[], int off, int len) throws IOException; // 写入多个字节

Native层源码:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
//////////////////////////////////////////////////////////////////////////////
// RandomAccessFile.c文件
JNIEXPORT void JNICALL
Java_java_io_RandomAccessFile_write(JNIEnv *env, jobject this, jint byte) {
writeSingle(env, this, byte, JNI_FALSE, raf_fd);
}

JNIEXPORT void JNICALL
Java_java_io_RandomAccessFile_writeBytes(JNIEnv *env,
jobject this, jbyteArray bytes, jint off, jint len) {
writeBytes(env, this, bytes, off, len, JNI_FALSE, raf_fd);
}

//////////////////////////////////////////////////////////////////////////////
// io_util.c文件
void
writeSingle(JNIEnv *env, jobject this, jint byte, jboolean append, jfieldID fid) {
// Discard the 24 high-order bits of byte. See OutputStream#write(int)
// 在OutputStream.write(int)方法中已经通过位运算处理了int的高24位字节
// 所以这里可以直接强转
char c = (char) byte;
jint n;
// 获取文件句柄(Windows)
FD fd = GET_FD(this, fid);
if (fd == -1) {
JNU_ThrowIOException(env, "Stream Closed");
return;
}
if (append == JNI_TRUE) {
// 向后追加
n = IO_Append(fd, &c, 1);
} else {
// 覆盖写入
n = IO_Write(fd, &c, 1);
}
if (n == -1) {
JNU_ThrowIOExceptionWithLastError(env, "Write error");
}
}


void
writeBytes(JNIEnv *env, jobject this, jbyteArray bytes,
jint off, jint len, jboolean append, jfieldID fid)
{
jint n;
// 栈内存缓冲区
char stackBuf[BUF_SIZE];
char *buf = NULL;
FD fd;

if (IS_NULL(bytes)) {
JNU_ThrowNullPointerException(env, NULL);
return;
}

if (outOfBounds(env, off, len, bytes)) {
JNU_ThrowByName(env, "java/lang/IndexOutOfBoundsException", NULL);
return;
}

if (len == 0) {
return;
} else if (len > BUF_SIZE) {
buf = malloc(len);
if (buf == NULL) {
JNU_ThrowOutOfMemoryError(env, NULL);
return;
}
} else {
buf = stackBuf;
}

// 将Java层字节数组,转成Native层字节数组
// Java中数组是一个对象,对象头部有部分其他信息(比如数组的长度)
// 不像C语言的字节数组那么单纯
(*env)->GetByteArrayRegion(env, bytes, off, len, (jbyte *)buf);

if (!(*env)->ExceptionOccurred(env)) {
off = 0;
// 这里要循环,IO_Append,IO_Write底层调用的WriteFile API
// 不是让写多少就写多少
while (len > 0) {
fd = GET_FD(this, fid);
if (fd == -1) {
JNU_ThrowIOException(env, "Stream Closed");
break;
}
if (append == JNI_TRUE) {
// 向后追加
n = IO_Append(fd, buf+off, len);
} else {
// 覆盖写入
n = IO_Write(fd, buf+off, len);
}
if (n == -1) {
JNU_ThrowIOExceptionWithLastError(env, "Write error");
break;
}
// 已写入n个字节
off += n;
len -= n;
}
}
// 释放内存
if (buf != stackBuf) {
free(buf);
}
}

////////////////////////////////////////////////////////////////////////////
// io_util_md.h
#define IO_Append handleAppend
#define IO_Write handleWrite

////////////////////////////////////////////////////////////////////////////
// io_util_md.c
jint handleWrite(FD fd, const void *buf, jint len) {
return writeInternal(fd, buf, len, JNI_FALSE);
}

jint handleAppend(FD fd, const void *buf, jint len) {
return writeInternal(fd, buf, len, JNI_TRUE);
}

static jint writeInternal(FD fd, const void *buf, jint len, jboolean append)
{
BOOL result = 0;
DWORD written = 0;
HANDLE h = (HANDLE)fd;// Windows中文件句柄就是FileDescriptor
if (h != INVALID_HANDLE_VALUE) {
OVERLAPPED ov;
LPOVERLAPPED lpOv;
if (append == JNI_TRUE) {
// 构造OVERLAPPED结构体
ov.Offset = (DWORD)0xFFFFFFFF;
ov.OffsetHigh = (DWORD)0xFFFFFFFF;
ov.hEvent = NULL;
lpOv = &ov;
} else {
lpOv = NULL;
}
// 调用Windows API
result = WriteFile(h, /* File handle to write */
buf, /* pointers to the buffers */
len, /* number of bytes to write */
&written, /* receives number of bytes written */
lpOv); /* overlapped struct */
}
if ((h == INVALID_HANDLE_VALUE) || (result == 0)) {
return -1;
}
return (jint)written;
}

点击这里查看WriteFile的API文档

1
2
3
4
5
6
7
8
9
10
11
12
BOOL WINAPI WriteFile(
// 文件句柄
_In_ HANDLE hFile,
// 要写入的字节数据
_In_ LPCVOID lpBuffer,
// 要写入多少数据
_In_ DWORD nNumberOfBytesToWrite,
// 实际写入了多少数据,作为返回值
_Out_opt_ LPDWORD lpNumberOfBytesWritten,
// OVERLAPPED结构体指针,对FILE_FLAG_OVERLAPPED方式打开的文件有效
_Inout_opt_ LPOVERLAPPED lpOverlapped
);

seek

1
private native void seek0(long pos) throws IOException;

Native层源码:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
/////////////////////////////////////////////////////////////////
// RandomAccessFile.c文件
JNIEXPORT void JNICALL
Java_java_io_RandomAccessFile_seek0(JNIEnv *env,
jobject this, jlong pos) {

FD fd;

fd = GET_FD(this, raf_fd);
if (fd == -1) {
JNU_ThrowIOException(env, "Stream Closed");
return;
}
if (pos < jlong_zero) {
JNU_ThrowIOException(env, "Negative seek offset");
} else if (IO_Lseek(fd, pos, SEEK_SET) == -1) {
// 调用IO_Lseek函数
JNU_ThrowIOExceptionWithLastError(env, "Seek failed");
}
}

///////////////////////////////////////////////////////////////
// io_util_md.h文件
#define IO_Lseek handleLseek

///////////////////////////////////////////////////////////////
// io_util_md.c文件
jlong
handleLseek(FD fd, jlong offset, jint whence)
{
LARGE_INTEGER pos, distance;
DWORD lowPos = 0;
long highPos = 0;
DWORD op = FILE_CURRENT;
HANDLE h = (HANDLE)fd;

if (whence == SEEK_END) {
op = FILE_END;
}
if (whence == SEEK_CUR) {
op = FILE_CURRENT;
}
if (whence == SEEK_SET) {
op = FILE_BEGIN;
}

distance.QuadPart = offset;
// 调用SetFilePointerEx API
if (SetFilePointerEx(h, distance, &pos, op) == 0) {
return -1;
}
// 返回移动后的位置
return long_to_jlong(pos.QuadPart);
}

点击这里查看SetFilePointEx的API文档

1
2
3
4
5
6
7
8
9
10
11
12
13
BOOL WINAPI SetFilePointerEx(
// 文件句柄
_In_ HANDLE hFile,
// 要移动的距离
_In_ LARGE_INTEGER liDistanceToMove,
// 移动后的文件指针位置
_Out_opt_ PLARGE_INTEGER lpNewFilePointer,
// 移动的相对起点:
// FILE_BEGIN 文件开头
// FILE_END 文件结尾
// FILE_CURRENT 当前位置
_In_ DWORD dwMoveMethod
);

getFilePointer

1
public native long getFilePointer() throws IOException;

Native层源码:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
JNIEXPORT jlong JNICALL
Java_java_io_RandomAccessFile_getFilePointer(JNIEnv *env, jobject this) {
FD fd;
jlong ret;

fd = GET_FD(this, raf_fd);
if (fd == -1) {
JNU_ThrowIOException(env, "Stream Closed");
return -1;
}
// 仍然是调用IO_Lseek方法,但是最后参数(相对位置),设置为当前位置
if ((ret = IO_Lseek(fd, 0L, SEEK_CUR)) == -1) {
JNU_ThrowIOExceptionWithLastError(env, "Seek failed");
}
return ret;
}

RandomAccessFile类最终调用的是Windows的四个API:OpenFile,ReadFile,WriteFile,GetFilePointer

FileInputStream和FileOutputStream

FileInputStream和FileOutputStream与C++的STL中的文件流API类似:面向对象,RandomAccessFile仅仅以面向对象方式封装了文件读写。Java的文件流功能上肯定不如C++,要知道C++的运算符重载,模板类等语言特性让C++的文件操作简单了很多(相反调试也变得更加困难)。

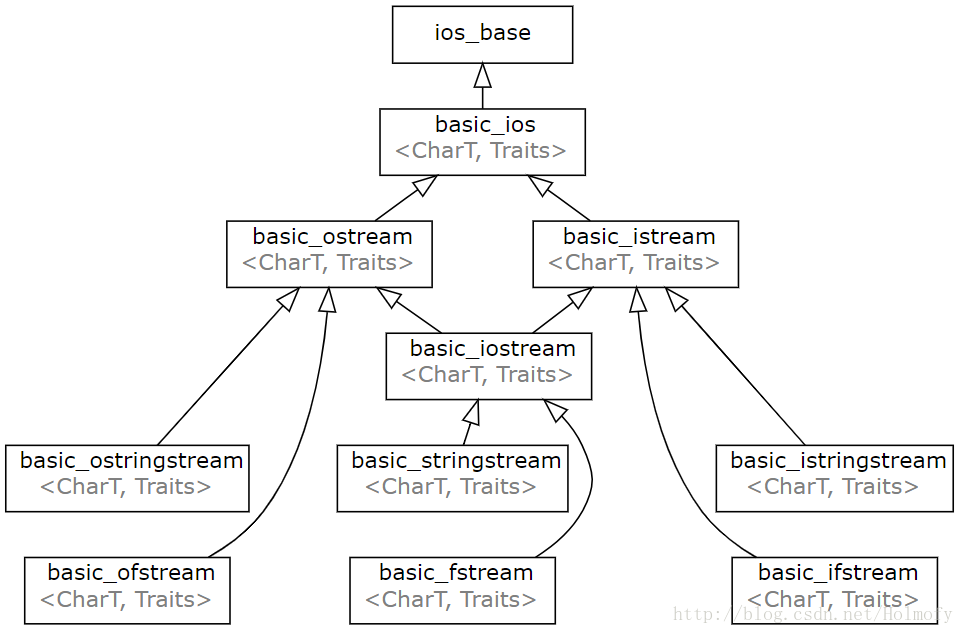

C++中std::basic_ifstream代表了文件输入流,std::basic_ofstream代表了文件输出流,又因为C++有多继承的特性所以还有一个std::basic_fstream融合了前两者的功能(实际上并非继承自前两个类而是继承自basic_iostream类)。

C++中的IO流

不过C++虽好,但Java的native实现仍使用C语言(实际上Java API几乎都是C语言实现,而JVM的实现Hotspot才使用到了C++)。

事实上FileInputStream和FileOutputStream的实现和RandomAccessFile几近一致:

FileInputStream的native方法

1
2
3
4
5
private native void open0(String name) throws FileNotFoundException;
private native int read0() throws IOException;
private native int readBytes(byte b[], int off, int len) throws IOException;
public native long skip(long n) throws IOException;
public native int available() throws IOException;

Native层源码:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
JNIEXPORT void JNICALL
Java_java_io_FileInputStream_open(JNIEnv *env, jobject this, jstring path) {
// fileOpen,这和RandomAccessFile打开文件调用同一个函数
fileOpen(env, this, path, fis_fd, O_RDONLY);
}

JNIEXPORT jint JNICALL
Java_java_io_FileInputStream_read(JNIEnv *env, jobject this) {
// readSingle,读取单个字节
return readSingle(env, this, fis_fd);
}

JNIEXPORT jint JNICALL
Java_java_io_FileInputStream_readBytes(JNIEnv *env, jobject this,
jbyteArray bytes, jint off, jint len) {
// readBytes,读取多个字节
return readBytes(env, this, bytes, off, len, fis_fd);
}

JNIEXPORT jlong JNICALL
Java_java_io_FileInputStream_skip(JNIEnv *env, jobject this, jlong toSkip) {
jlong cur = jlong_zero;
jlong end = jlong_zero;
FD fd = GET_FD(this, fis_fd);
if (fd == -1) {
JNU_ThrowIOException (env, "Stream Closed");
return 0;
}
// IO_Lseek函数,和RandomAccessFile的seek方法实现类似
if ((cur = IO_Lseek(fd, (jlong)0, (jint)SEEK_CUR)) == -1) {
JNU_ThrowIOExceptionWithLastError(env, "Seek error");
} else if ((end = IO_Lseek(fd, toSkip, (jint)SEEK_CUR)) == -1) {
JNU_ThrowIOExceptionWithLastError(env, "Seek error");
}
return (end - cur);
}

JNIEXPORT jint JNICALL
Java_java_io_FileInputStream_available(JNIEnv *env, jobject this) {
jlong ret;
FD fd = GET_FD(this, fis_fd);
if (fd == -1) {
JNU_ThrowIOException (env, "Stream Closed");
return 0;
}
// 唯一出了点新花样的可能就是这个IO_Available函数
if (IO_Available(fd, &ret)) {
if (ret > INT_MAX) {
ret = (jlong) INT_MAX;
} else if (ret < 0) {
ret = 0;
}
return jlong_to_jint(ret);
}
JNU_ThrowIOExceptionWithLastError(env, NULL);
return 0;
}

///////////////////////////////////////////////////////////////////////////////
// io_util_md.h文件
#define IO_Available handleAvailable

int
handleAvailable(FD fd, jlong *pbytes) {
HANDLE h = (HANDLE)fd;
DWORD type = 0;

// 获取文件类型,调用Windows API
type = GetFileType(h);
/* Handle is for keyboard or pipe */
if (type == FILE_TYPE_CHAR || type == FILE_TYPE_PIPE) {
int ret;
long lpbytes;
// 获取标准输入流
HANDLE stdInHandle = GetStdHandle(STD_INPUT_HANDLE);
if (stdInHandle == h) {
ret = handleStdinAvailable(fd, &lpbytes); /* keyboard */
} else {
ret = handleNonSeekAvailable(fd, &lpbytes); /* pipe */
}
(*pbytes) = (jlong)(lpbytes);
return ret;
}
/* Handle is for regular file */
if (type == FILE_TYPE_DISK) {
jlong current, end;

LARGE_INTEGER filesize;
current = handleLseek(fd, 0, SEEK_CUR);
if (current < 0) {
return FALSE;
}
// 调用Windows API获取文件大小
if (GetFileSizeEx(h, &filesize) == 0) {
return FALSE;
}
end = long_to_jlong(filesize.QuadPart);
*pbytes = end - current;
return TRUE;
}
return FALSE;
}

查看GetFileTypeGetFileSizeEx的API文档

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
// FILE_TYPE_CHAR  字符文件,典型的如:打印设备或控制台
// FILE_TYPE_DISK 磁盘文件
// FILE_TYPE_PIPE 管道文件,如Socket,命名管道,匿名管道
// FILE_TYPE_REMOTE 未使用
// FILE_TYPE_UNKNOWN 未知设备,或者函数调用出错
DWORD WINAPI GetFileType(
// 文件句柄
_In_ HANDLE hFile
);

BOOL WINAPI GetFileSizeEx(
// 文件句柄
_In_ HANDLE hFile,
// 接收文件大小的长整型指针
_Out_ PLARGE_INTEGER lpFileSize
);

FileOutputStream的native方法

FileOutputStream的native实现就更简单了

1
2
3
private native void open0(String name, boolean append) throws FileNotFoundException;
private native void write(int b, boolean append) throws IOException;
private native void writeBytes(byte b[], int off, int len, boolean append) throws IOException;

Native源码:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
JNIEXPORT void JNICALL
Java_java_io_FileOutputStream_open(JNIEnv *env, jobject this,
jstring path, jboolean append) {
// fileOpen:打开文件
fileOpen(env, this, path, fos_fd,
O_WRONLY | O_CREAT | (append ? O_APPEND : O_TRUNC));
}
JNIEXPORT void JNICALL
Java_java_io_FileOutputStream_write(JNIEnv *env, jobject this, jint byte, jboolean append) {
// writeSingle:写入单个字节
writeSingle(env, this, byte, append, fos_fd);
}

JNIEXPORT void JNICALL
Java_java_io_FileOutputStream_writeBytes(JNIEnv *env,
jobject this, jbyteArray bytes, jint off, jint len, jboolean append)
{
// writeBytes:写入多个字节
writeBytes(env, this, bytes, off, len, append, fos_fd);
}

本作品采用 知识共享署名 4.0 国际许可协议 进行许可。

转载时请注明原文链接:https://blog.hufeifei.cn/2017/08/Java/JavaIO%E6%80%8E%E4%B9%88%E8%B0%83%E7%94%A8WindowsAPI%E7%9A%84/

鼓励一下
支付宝微信
