RMI简单示例

RMI是Java1.1中实现的一种RPC通信机制。使用RMI可以让一个Java虚拟机中的对象调用另外一个虚拟机中对象的方法,它大大增强了Java开发分布式应用的能力。

这篇文章使用RMI实现一个简单的例子。

服务端代码

**1.**声明一个服务接口,提供给远程调用,该接口必须继承自java.rmi.Remote接口。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
package cn.hff.service;

import java.rmi.Remote;
import java.rmi.RemoteException;

/**
* 提供一个简单的远程调用接口,该接口必须继承Remote接口,用于标记该接口是远程服务提供。
*/
public interface ICalcService extends Remote {

/**
* @throws RemoteException
* 远程方法必须声明该异常
*/
int add(int a, int b) throws RemoteException;

/**
* @throws RemoteException
* 远程方法必须声明该异常
*/
int minus(int a, int b) throws RemoteException;

}

**2.**实现该服务接口

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
package cn.hff.service;

public class CalcServiceImpl implements ICalcService {

public int add(int a, int b) {
int result = a + b;
System.out.printf("%d + %d = %d %n", a, b, result);
return result;
}

public int minus(int a, int b) {
int result = a - b;
System.out.printf("%d - %d = %d %n", a, b, result);
return result;
}

}

**3.**调用RMI的API将服务暴露给客户端调用

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
package cn.hff.server;

import java.net.MalformedURLException;
import java.rmi.AlreadyBoundException;
import java.rmi.Remote;
import java.rmi.RemoteException;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;
import java.rmi.server.UnicastRemoteObject;

import cn.hff.service.CalcServiceImpl;
import cn.hff.service.ICalcService;

public class Server {

public static final String SERVICE_NAME = "calc";

public static void main(String[] args) throws RemoteException, MalformedURLException, AlreadyBoundException {

// 创建服务对象
ICalcService service = new CalcServiceImpl();

// 将服务暴露给远程调用
Remote stub = UnicastRemoteObject.exportObject(service, 0);

// 获取本地RMI注册表对象
Registry registry = LocateRegistry.getRegistry();

// 将存根以指定服务名绑定到注册表中
registry.rebind(SERVICE_NAME, stub);

System.out.println("ok. calc service binded");

}
}

上面的绑定服务的方法可以简写成下面这种形式:

1
2
3
4
5
6
7
8
9
10
public static void main(String[] args) throws RemoteException, MalformedURLException, AlreadyBoundException {

ICalcService service = new CalcServiceImpl();

// Naming类已经帮我们把各种操作封装好了
// 这里可以指定端口,rmiregistry默认端口为1099
Naming.rebind("rmi://127.0.0.1:1099/calc", service);

System.out.println("ok. calc service binded");
}

客户端代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
package cn.hff.client;

import java.rmi.NotBoundException;
import java.rmi.Remote;
import java.rmi.RemoteException;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;

import cn.hff.service.ICalcService;

public class Client {

public static final String SERVICE_NAME = "calc";

public static void main(String[] args) throws RemoteException, NotBoundException {

// 获取服务注册表
Registry registry = LocateRegistry.getRegistry("127.0.0.1", 0);

// 从注册表中查找指定服务
Remote stub = registry.lookup(SERVICE_NAME);

// 调用服务
ICalcService service = (ICalcService) stub;

int add = service.add(3, 3);

System.out.println(add);

int minus = service.minus(3, 3);

System.out.println(minus);

}
}

和前面一样,查找服务的步骤也已经封装在Naming中:

1
Remote stub = Naming.lookup("rmi://127.0.0.1:1099/calc");

编译运行

**1.**编译服务端的三个类,并在类路径下执行rmiregistry命令运行本地注册表,然后再执行Server的main方法。

1
2
3
4
5
6
7
8
## 编译服务端代码
javac cn/hff/service/ICalcService.java cn/hff/service/CalcServiceImpl.java cn/hff/server/Server.java

## 运行本地注册表,注意开启后不要关闭
## 可以用"rmiregistry &"让它在后台运行
## rmiregistry还可以指定端口
## 这个端口就是服务端绑定服务、客户端查找服务的端口
rmiregistry

运行Server类的main方法:

1
java cn.hff.server.Server

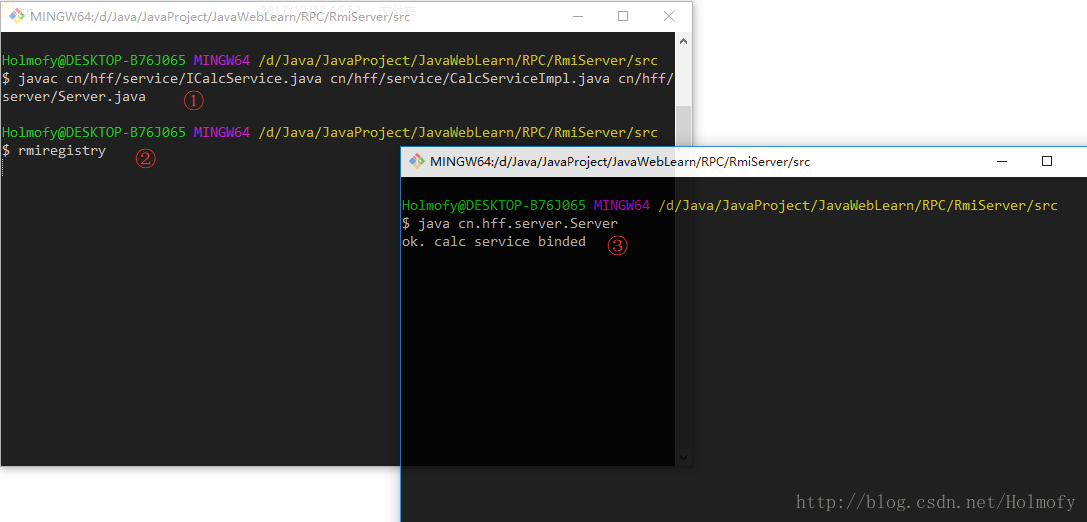

服务端开启

**2.**编译并运行客户端程序

1
2
3
4
## 编译
javac cn/hff/client/Client.java
## 运行
java cn.hff.client.Client

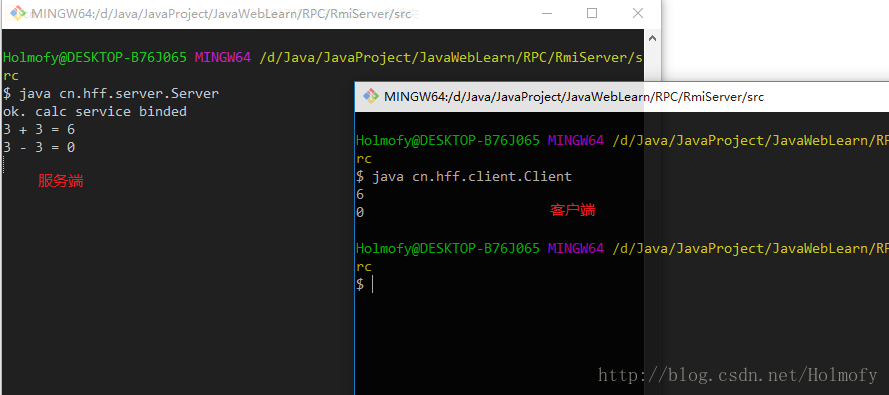

客户端调用
